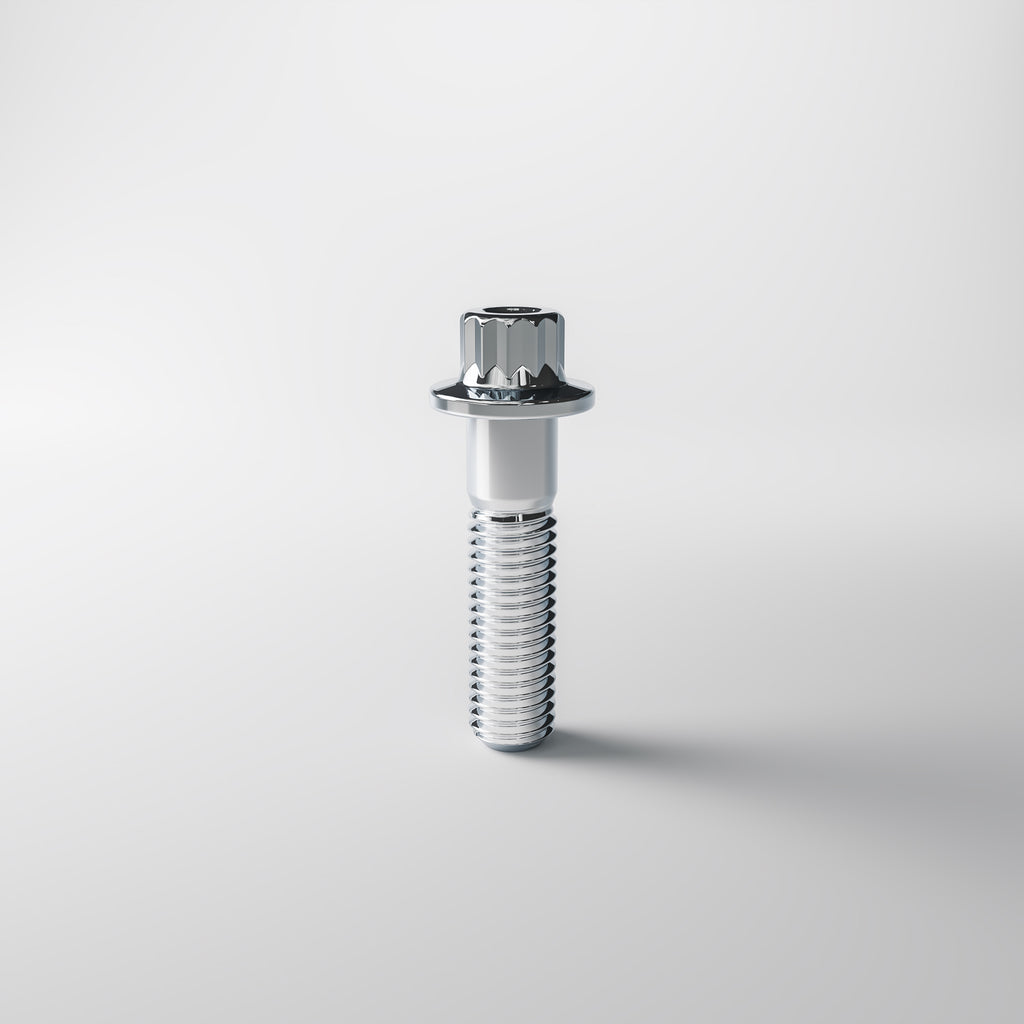

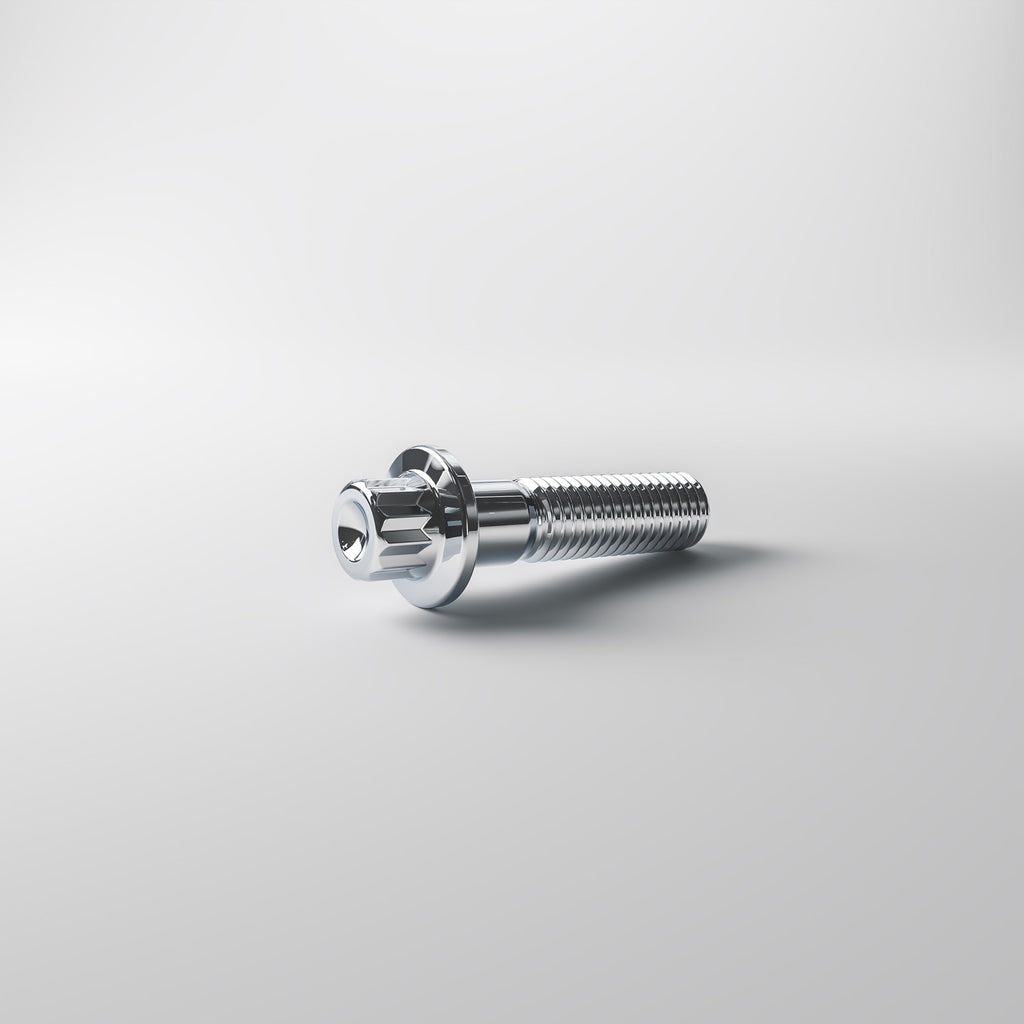

Chrome - M8 32mmSteel Split Rim Bolts
Chrome M8 32mm split rim assembly bolts. These bolts are suitable for select three piece and two piece split rim/modular wheels, such as HRE, DPE, Iforged, Rotiform, Asanti and Work plus many more (dependent on specific manufacturer model*). These are the perfect finishing touch when refurbishing your split rim/modular wheels. Just select the quantity of bolts you need above.

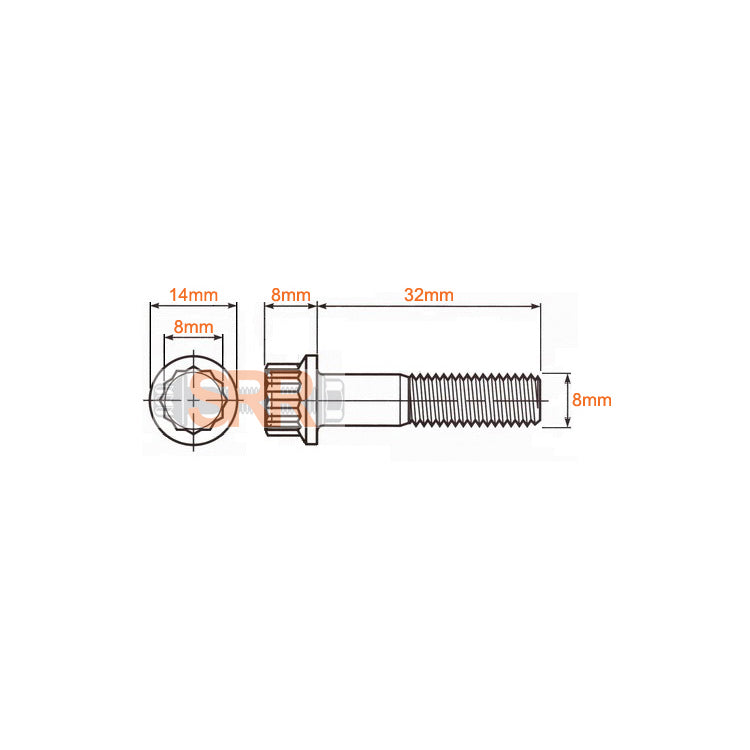

- 10.9 High Tensile Steel
- 14mm Flange Diameter
- 8mm 12 Point Head
- 8mm Head Length
- 8mm Shaft Diameter
- 32mm Shaft Length
- 24mm Thread Length
- 1.25mm Thread Pitch
- Triple Plated*
Two & Three piece wheel assembly is not for the faint-hearted. We urge all customers to educate themselves with correct wheel rebuilding techniques prior to attempting any rebuild. We highly recommend that all builds are carried out by professional wheel re-finishers.
We will not be liable for any damages due to improper assembly. Preparation is absolutely crucial. Always ensure that all holes which the bolts will pass through are clean and free from debris. All mating surfaces need to be prepped/sanded prior to assembly. If you are reusing your existing nuts please again ensure there is no existing debris within the threads.
Special care needs to be taken during installation. Proper procedure is necessary so the bolt does not incur any damage. We recommend holding the head of the bolt while tightening and torquing the nut. However we understand that this may not be possible in all applications. It is suggested that a barrier between the socket and head of bolt is used such as cling film, this decreases the chance of any damage occurring. During cleaning it is important to use only water and refrain from harsh abrasives. We recommend that all plated bolts and mirror polished wheel lips are maintained and sealed with a good non acidic nano wheel sealant for added protection.
The recommended torque figure for a set of 2 piece wheels is 15-18ft/lbs; For a set of 3 piece wheels we recommend 22-26ft/lbs. Strictly do not over torque your bolts. We recommend to hand torque all bolts before the final torque is applied. We also highly recommend to torque bolts opposite to one another before moving round to the next bolt. We recommend that all wheels are rebuilt and sealed with Wurth Bond & Seal. One tube is more than enough for four wheels.
